The BULL 424 SE is a sliding gate automation system designed for efficiency and durability in residential settings.
Features:
Motor Power: 24V DC motor, providing reliable operation for gates up to 400 kg in weight.
Gear Mechanism: Features a precision-engineered gear system for smooth and quiet operation.

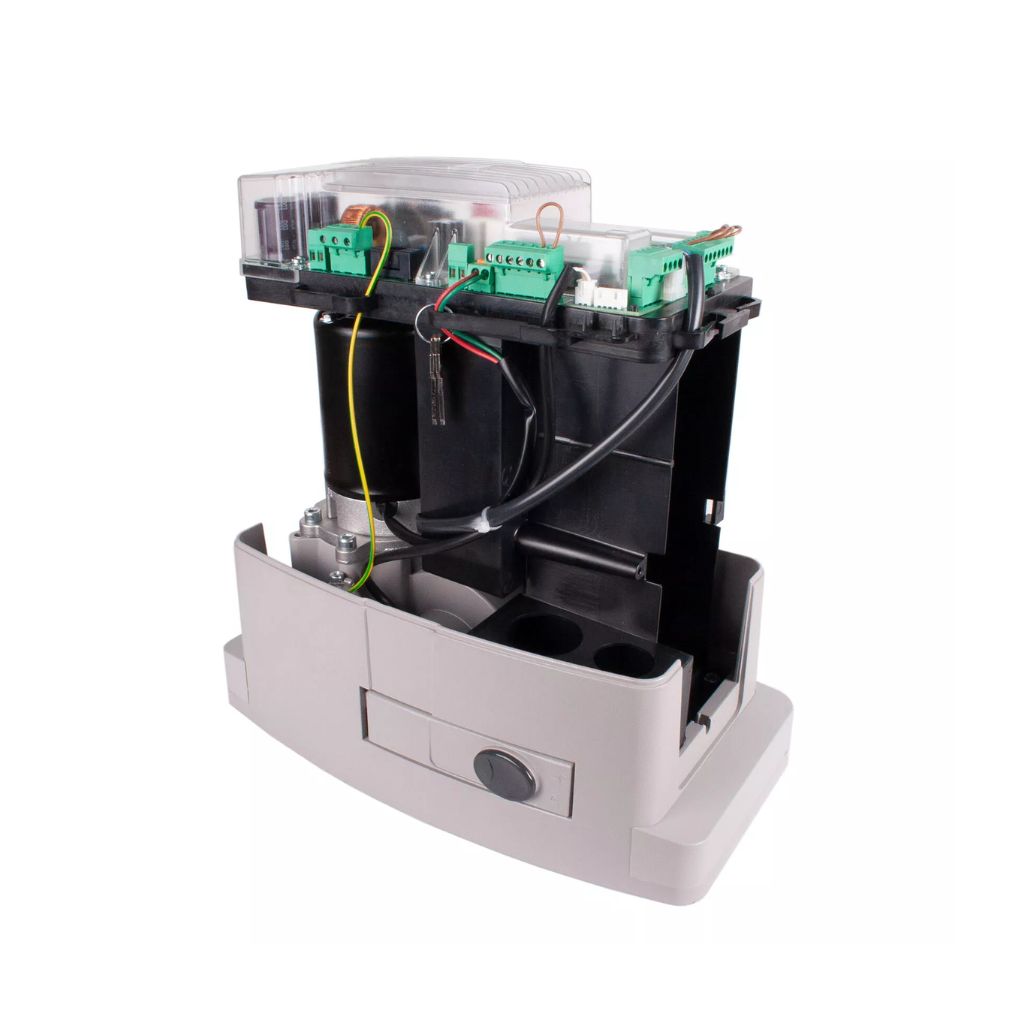

Control Board: Integrated control board with programmable settings for ease of use and customization.
Safety Features: Includes built-in safety sensors and an emergency manual release to ensure safe operation and accessibility in emergencies.
Operating Temperature: Designed to function effectively in temperatures ranging from -20°C to +55°C.
Speed: Gate movement speed is adjustable, allowing for optimal performance based on specific requirements.
Dimensions: Compact design for easy installation in a variety of settings.
The BULL 424 SE is engineered for durability and reliability, with a focus on delivering consistent performance and ease of maintenance. It offers a practical solution for automating sliding gates with a balance of advanced features and robust construction.
Power supply 115 / 230 Vac (50-60Hz)
Motor supply 24 Vdc
Max absorbed current 3.2 / 1.7 A
Maximum thrust 535 N
Opening speed 5.5 ÷ 12 m/min
Duty cycle intensive use
Protection level IP44
Encoder Virtual encoder
Limit switches Magnetic
Pinion for rack M4 Z14
Operating temperature -20°C /+50°C
Lubrication GREASE
Maximum gate weight 450 kg
Weight 8 kg
Kit weight 8.7 kg
